The indoor workhorse. BLE 5 + WiFi AP in a single box.
Long-range BLE 5 coverage for indoor environments, with a built-in WiFi access point that can hop onto existing site infrastructure or run as a standalone AP. Ships ready to talk to Fleet and the on-prem appliance alike.
Features.
-
BLE 5 long-range for indoor coverage that doesn't need repeaters every 30 metres
-
WiFi AP doubles as site connectivity for the hub itself and anything else you want on the LAN
-
Bi-directional BLE so you can push config/updates back to the end devices
-
1-second scan interval, so a tag's last-seen time is current to the second
-
LED ring with software-controlled states (useful for on-site debug)
-

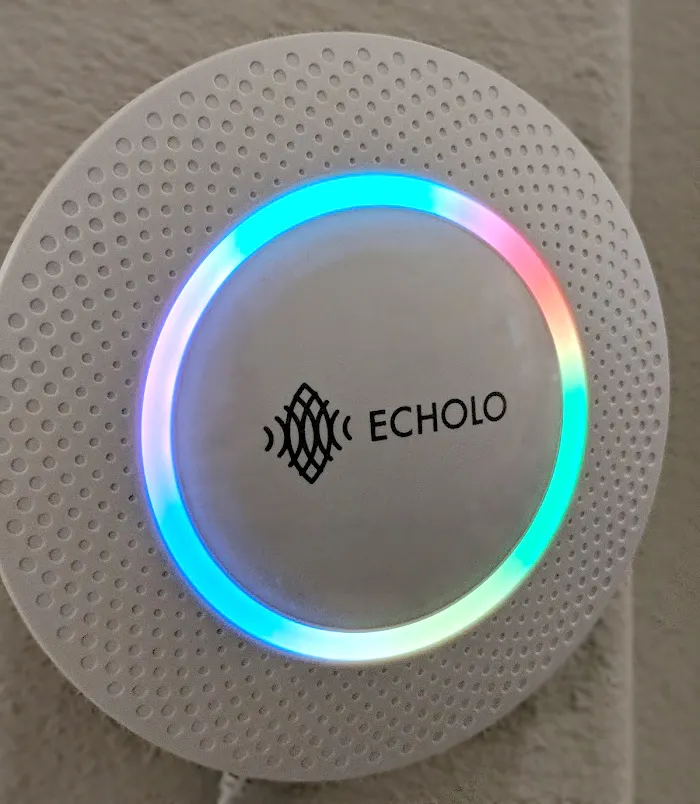

Mounts flat against a wall or ceiling — anti-theft and aesthetically quiet
The facts sheet.
Radios
- BLE 5.0 bi-directional (Nordic nRF52832)
- WiFi 2.4 GHz 802.11b/g/n · AP or repeater mode
Network
- Ethernet 10/100
- WiFi backhaul
- Power over Ethernet
- Processor
- Nordic nRF52832 · ARM Cortex-M4
- Range
- Up to 300 m BLE · ~100 m WiFi AP
- Power
- 5 V DC @ 1 A or PoE
- Enclosure
- Polycarbonate · wall/ceiling mount hardware included
- Dimensions
- 150 × 150 × 36 mm
- Operating temp
- -25 °C to +65 °C
- Warranty
- 2 years standard · lifetime with on-premise service
Built for.
- 01 Indoor presence and zone coverage
- 02 Warehouse pallet + lift tracking
- 03 Fleet pages at an indoor yard / depot
- 04 On-prem automation triggers
- 05 BLE device commissioning and firmware push
Why we ship it
The G1 is the hub we reach for first on indoor deployments where reliability beats novelty. BLE 5 gives us enough range that a single G1 usually covers a full warehouse bay without additional gear, and the built-in WiFi AP solves a problem that’s otherwise annoying — getting the hub onto the network when IT won’t pull a new Ethernet drop.
Because the nRF52832 supports bi-directional BLE, the G1 can push configuration and firmware updates back to the end devices it sees. That means the tags you deploy in the field aren’t one-way beacons — you can calibrate, reprovision, or retire them without touching the hardware physically.
In production
Indoor warehouse deployments sit behind a G1 per zone, with ceiling mounts and PoE backhaul. At that density, the 300 m BLE range gives enough overlap that a single hub failing doesn’t leave a dead spot. Fleet’s hub-health view surfaces any G1 that stops reporting within about two minutes.
Pairs well with
- Fleet for live visibility and alerts
- Echolo On-Premise Private when the site has a no-outbound-traffic rule
- OLR outdoor hubs to cover the yard adjacent to the indoor footprint
